Metallisation
Precision metal coatings on ceramic substrates for electronics, sensors, and advanced engineering applications

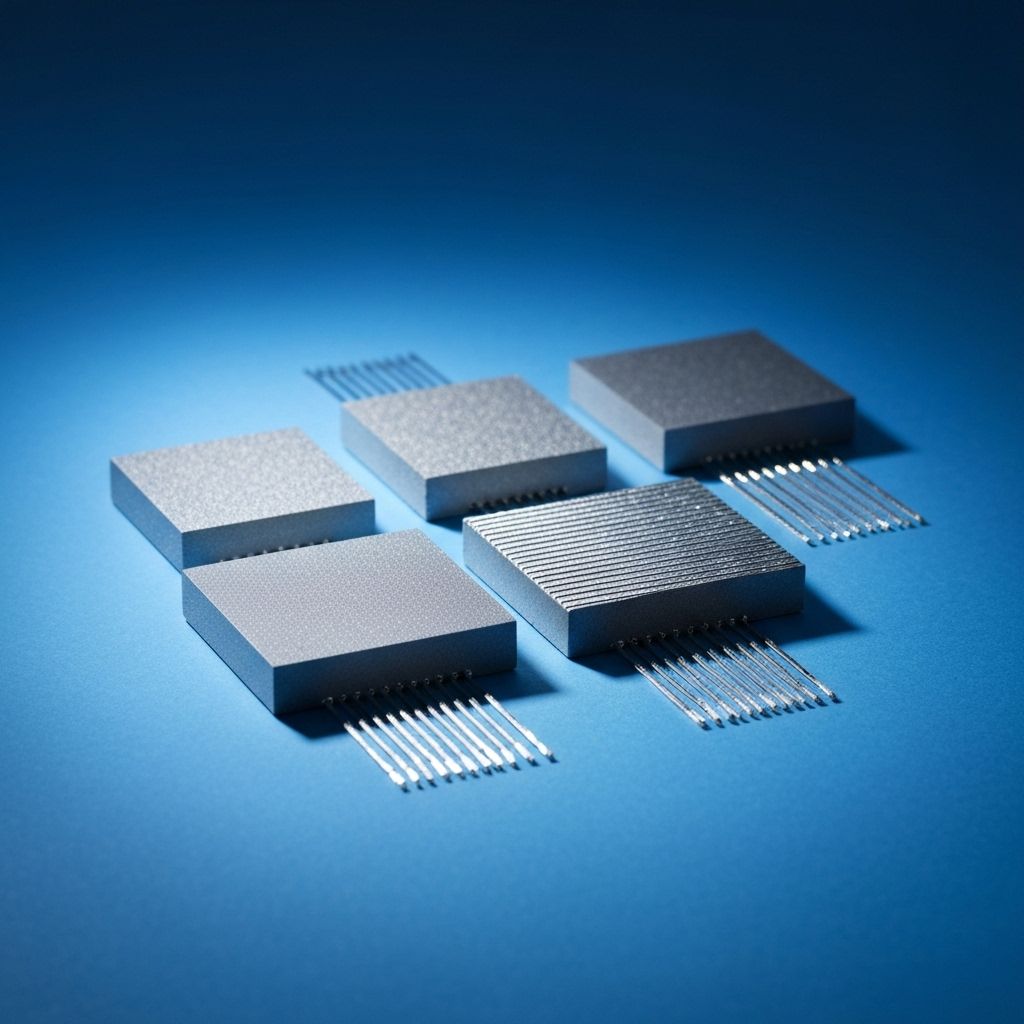

Advanced Ceramic Metallisation
Henson Ceramics Limited has an in-house metallisation facility for the bonding of molybdenum and moly/manganese to alumina ceramic under high temperature, controlled atmosphere conditions which subsequently allows the ceramic to undergo conventional brazing to form a vacuum-tight ceramic to metal bond.
Such components are used in high power applications, for example, and others which require good electrical insulation, high thermal shock resistance, high mechanical strength, and good vacuum integrity.
HCL manufactures all of its inks and coatings in-house, making it possible to cater for almost any specialist coating application. Facilities are also available for the bonding of silver, platinum, gold, chrome, nickel, and a variety of cermets to the entire range of ceramics.
Technical Capabilities
Metal Options
Wide range of metallisation materials:
- Molybdenum and Moly/Manganese
- Gold, Silver, Platinum
- Chrome and Nickel
- Cermets and composite coatings
Deposition Techniques
Advanced deposition methods:
- Banding
- Electroplating
- Evaporation
- Screen printing
- Valve dispensing
Performance
High-quality specifications:
- Vacuum-tight ceramic to metal bonds
- High thermal shock resistance
- Operating temp: up to 1000°C
Advanced Coating Technology
A multiple layer and multiple phase approach is adopted for the majority of coating applications. An in-depth knowledge of the effect of particle size distribution and reactivity of the various fillers/fluxes which are employed allows the ultimate deposit to be achieved.
Applications
Electronic Substrates
Circuit patterns and interconnects for hybrid electronics
Sensors
Electrodes for temperature, pressure, and gas sensors
Heating Elements
Resistive heating tracks for industrial and medical devices
Capacitors
Electrode layers for multilayer ceramic capacitors
RF Components
Conductive patterns for microwave and telecommunications
Medical Devices
Biocompatible electrodes and implantable components
Automotive Sensors
Lambda sensors and exhaust gas monitoring systems
Power Electronics
Substrates for high-power semiconductor modules
Vacuum Switches
High vacuum envelopes and electrical insulation
Image Intensifiers
High-performance imaging and detection systems
Why Choose Our Metallisation Services
Precision Patterning
Accurate metal deposition with tight tolerances for complex designs
Strong Adhesion
Excellent metal-to-ceramic bonding for long-term reliability
High Conductivity
Low resistance pathways for efficient electrical performance
Thermal Stability
Metallisation layers stable at elevated operating temperatures
Custom Formulations
Tailored metal pastes and processes for specific requirements
Quality Assurance
Rigorous testing and inspection to ensure consistent quality
Ready to Discuss Your Metallisation Needs?
Contact our technical team to explore how our metallisation services can enhance your ceramic components
